SP1236FH，內(nèi)置MOS，耐壓40V，電流最大可做3.1A，低功耗，可過認(rèn)證。

Features
?  8V ~ 40V Supply Voltage Range
?  45V Input Voltage Surge
?  42V Input Over Voltage Protection
?  3% Voltage Reference Accuracy
?  7% Constant Current Accuracy
?  Cycle by Cycle Current Limit
?  External Optional Current Limit Mode
?  Programmable Frequency（60KHz ~ 1
?  Built in Adjustable Line-Compensation
?  Hiccup Short Circuit Protection
?  Duty Cycle Range (0~100%)
?  Internal Soft Start 3ms
?  CC/CV Mode Control

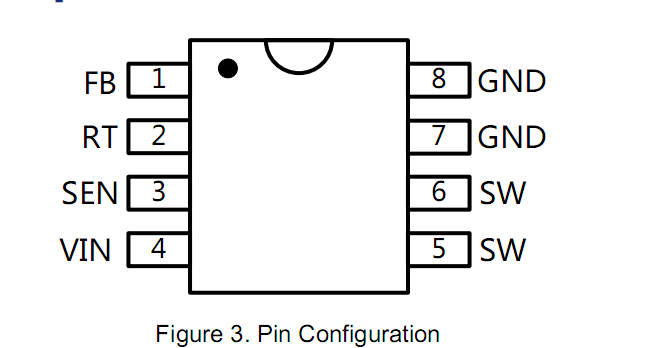

?  SOP-8L Package

General Description

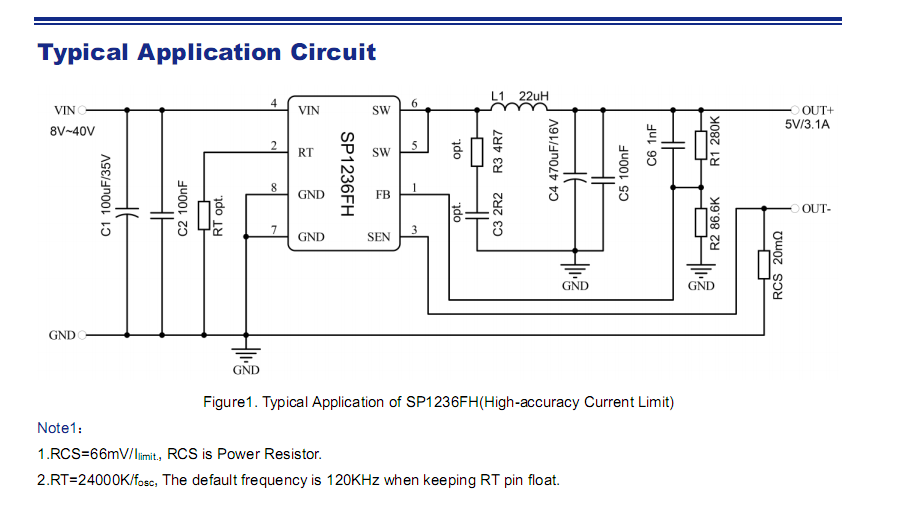

The  SP1236FH  is a synchronous buck  Regulator  with
output current to 3.1A. It is designed to allow for operating
a wide supply voltage range from 8V to 40V. The internal
compensation  requires  a minimum number  of readily
available standard external components.
The  SP1236FH  operates in the CC(Constant output
Current) mode or CV(Constant output Voltage) mode, and
the OCP current value is set by current sensing  power
resisters or setting non power resisters.
The SP1236FH is suitable for the DC/DC switching power
applications  when requested the current limit function.
The devices are available in SOP-8L package and require
very few external devices for operation.

Applications
?  Car Chargers
?  Portable Charger Devices
?  DC/DC Converters with Current Limit
